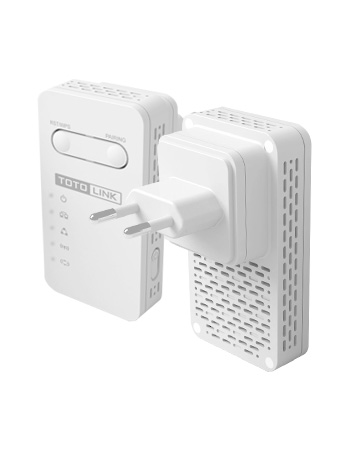

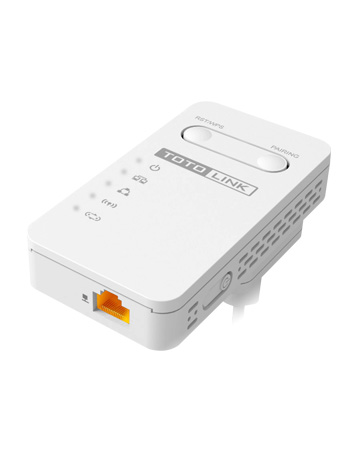

PLW350 KIT

150Mbps AV200 Wi-Fi Powerline Extender KIT

  • - Extend the Internet to Every Room
    - One-click WPS for Wi-Fi Extension
    - Wired and Wi-Fi Connection Simultaneously
    - Plug and Play
    - Maximum of 8 Add-on Extenders Supported
    - Portable Size
    - Independent Power Switch
    - Environmental Protection Design
  • PLW350 KIT powerline extender suit is designed to expand Wi-Fi signal to every corner of your house through electrical circuitry. With one WPS(Wi-Fi Protected Setup) button, PLW350 KIT can build a quick wireless connection to your home router and copy the SSID and Password automatically to boost your Wi-Fi. Meanwhile, you can connect your PC or other networked devices to PLW350 KIT via Ethernet cable to access the Internet  as well. So PLW350 KIT is an ideal solution to simplify your Wi-Fi configuration and unify your home network.


    Extend the Internet to Every Room
    By connecting to your existing router, PLW350 KIT can copy the wireless network name (SSID) and Password automatically to expand your home Wi-Fi to every room and reduce hard-to-reach areas.


    One-click WPS for Wi-Fi Extension
    Push the WPS button on both PLW350 KIT and router, secured Wi-Fi extension can be built easily and quickly to boost your Wi-Fi. Then you can take it anywhere of your house to make more Wi-Fi devices connected.


    Wired and Wi-Fi Connection Simultaneously
    With one Fast Ethernet port, both PLW350 not only broadcast Wi-Fi signal, but also can be used as Access Point, allowing any of your PC/Laptop/IPTV connect to it by Ethernet cable and share high-speed Internet.


    Plug and Play
    PLW350 add-on extender supports plug and play. Just plug it into outlet, PLW350 will detect the PLW350A in the same circuit and pair automatically. If you want to add more PLW350 add-on extenders in the network, the same way works as well.


    Maximum of 8 Add-on Extenders Supported
    In the same circuit, PLW350A supports connections to a maximum of 8 PLW350 add-on extenders to build a powerful home or office network, meeting the requirements of any multi-storey houses.


    Portable Size
    With the compact and stylish design, PLW350 is very convenient for users to take it and plug into any outlet of your house to access the Internet and share “Mobile Wi-Fi & wired network”.


    Independent Power Switch
    PLW350 KIT provides a independent power ON/OFF button to control the device flexibly and prolong the life of device.


    Environmental Protection Design
    Featured by low transmission power, low radiation and high reception sensitivity, PLW350 KIT is a real environmentally friendly network solution for smart home.

    - Complies with Home Plug AV and wireless IEEE802.11n/g/b standards.
    - Up to 200Mbps wired speed and 150Mbps Wi-Fi.
    - One-touch for secured wireless extension simply.
    - Supports AP mode and Repeater mode.

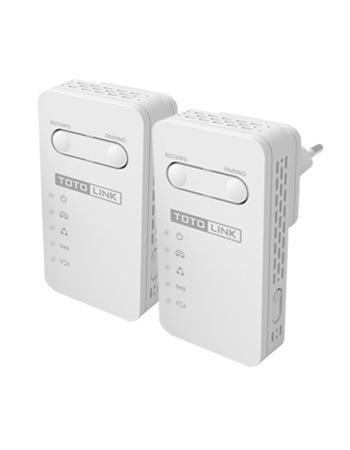

    - Twin Pack design helps establish a basic powerline network.
    - No need Ethernet cables, using electrical wires.
    - Both wired and Wi-Fi connection are available.
    - Independent Power ON/OFF button for easy device control.
    - Wi-Fi Schedule and Reboot Schedule for easy management on powerline extender.
    -  Environmental protection design.
    HARDWARE FEATURES
    Interface  1*10/100Mbps Ethernet Port
    Power Supply  AC 100V~240V
    Button  1*Power button, 1*WPS button, 1* RST button
    LED Indicators  1*Power, 1*LAN, 1*Link, 1*Wi-Fi
    WIRELESS FEATURES
    Standards  HomePlug AV, IEEE 802.3, IEEE 802.3u
      IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4GHz
    Data Rate  Up to 150Mbps Wi-Fi
      200Mbps over Powerline
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
      128-bit AES link encryption with key management
    Reception Sensitivity  11b 11M: - 81 dBm
      11g 54M: - 68 dBm
      11n HT20: - 65 dBm / HT40: - 62 dBm
    SOFTWARE FEATURES
    Operation Mode  AP Mode
      Repeater Mode
    Wireless Functions  Basic Setting
      Advanced Setting
    Schedule  Wi-Fi Schedule
      Reboot Schedule
    System  System Log, Admin Setup, Firmware Upgrade, System Time, Config Backup and Restore
    Others
    Package Contents  PLW350 KIT *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
