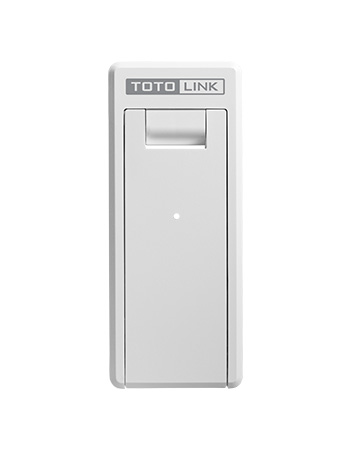

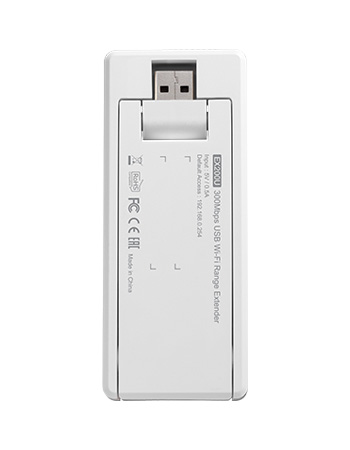

EX200U

300Mbps USB Wi-Fi Range Extender

  • - Light Up Your Wi-Fi Everywhere

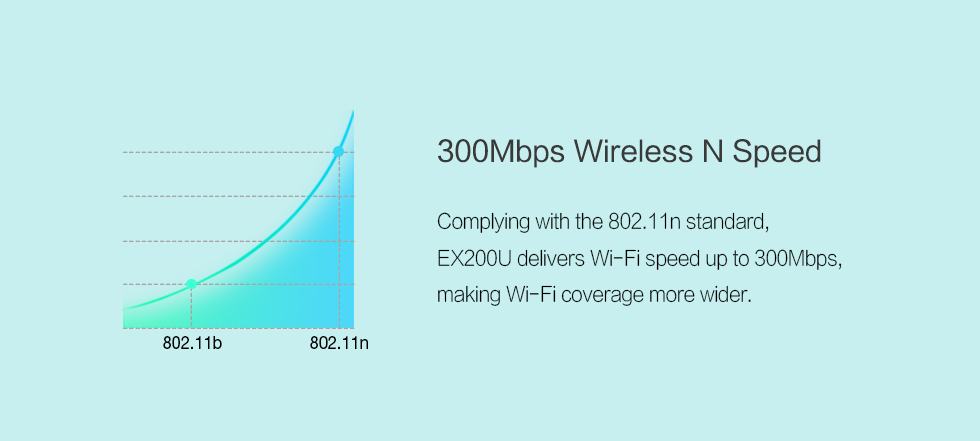

    - 300Mbps Wireless N Speed
    - User-friendly Setting Interface for Smart Phone

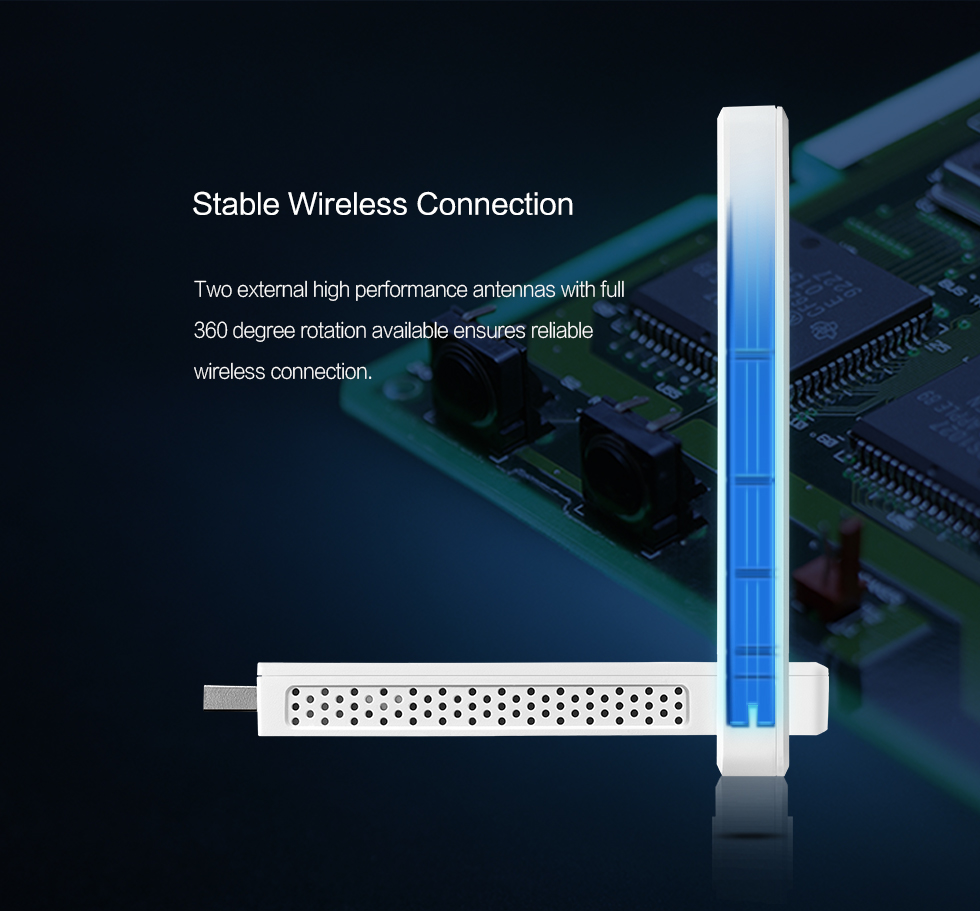

    - Stable Wireless Connection
    - Flexible USB Power Supply
    - High Compatibility

  • - Complies with IEEE 802.11n /g/b standards.

    - Supports quick setting by smart phone.

    - USB 2.0 port supports multiple methods for power supply.

    - Up to 300Mbps Wi-Fi speed.

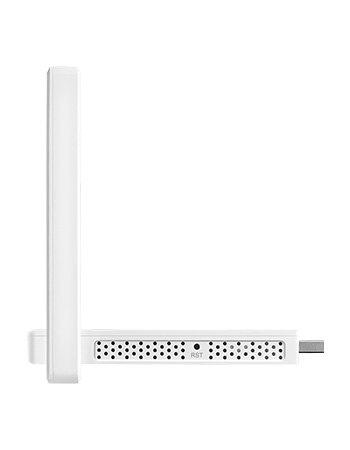

    - Two antennas ensure reliable connection.

    - Compact design for portable use.

    HARDWARE FEATURES
    Interface  1* USB2.0 Port

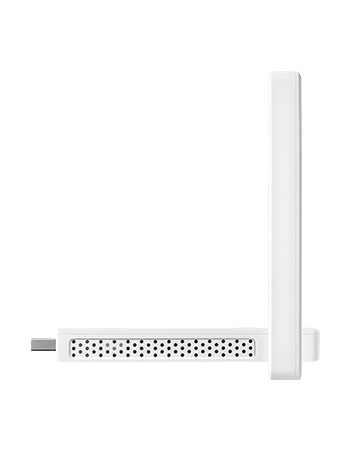

    Antenna   2* external antennas
    Button   1 * RST Button
    LED Indicator  1* Ext
    Dimensions (L X W X H)  4.3 x 1.8 x 0.5 in. (110 x 45 x 12mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rage  Up to 300Mbps
    EIRP  < 20dBm
    Wireless security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
      11b 11M: - 81 dBm
      11g 54M: - 68 dBm
      11n HT20: - 65 dBm
      HT40: - 62 dBm
    SOFTWARE FEATURES
    Others
    Package Contents  EX200U Extender *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~50 ℃ (32 ℉~122℉
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing
