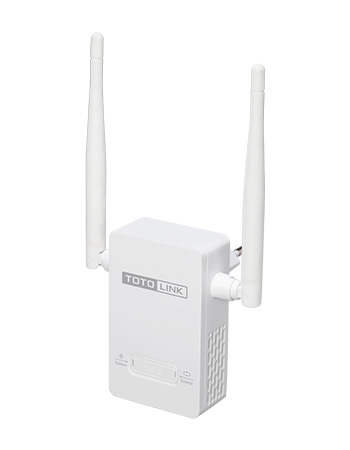

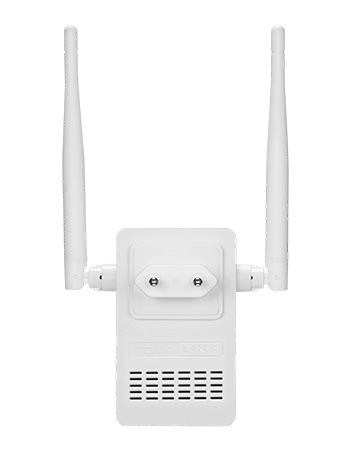

EX200

300Mbps Wireless N Range Extender

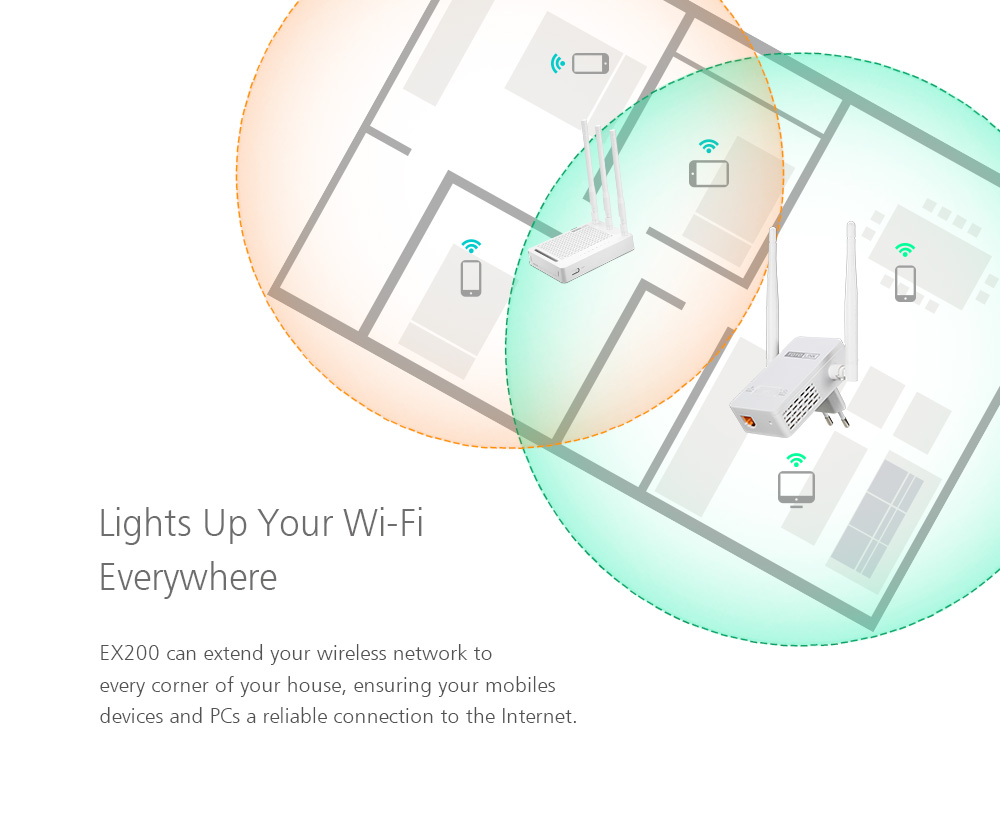

  • - Lights Up Your Wi-Fi Everywhere

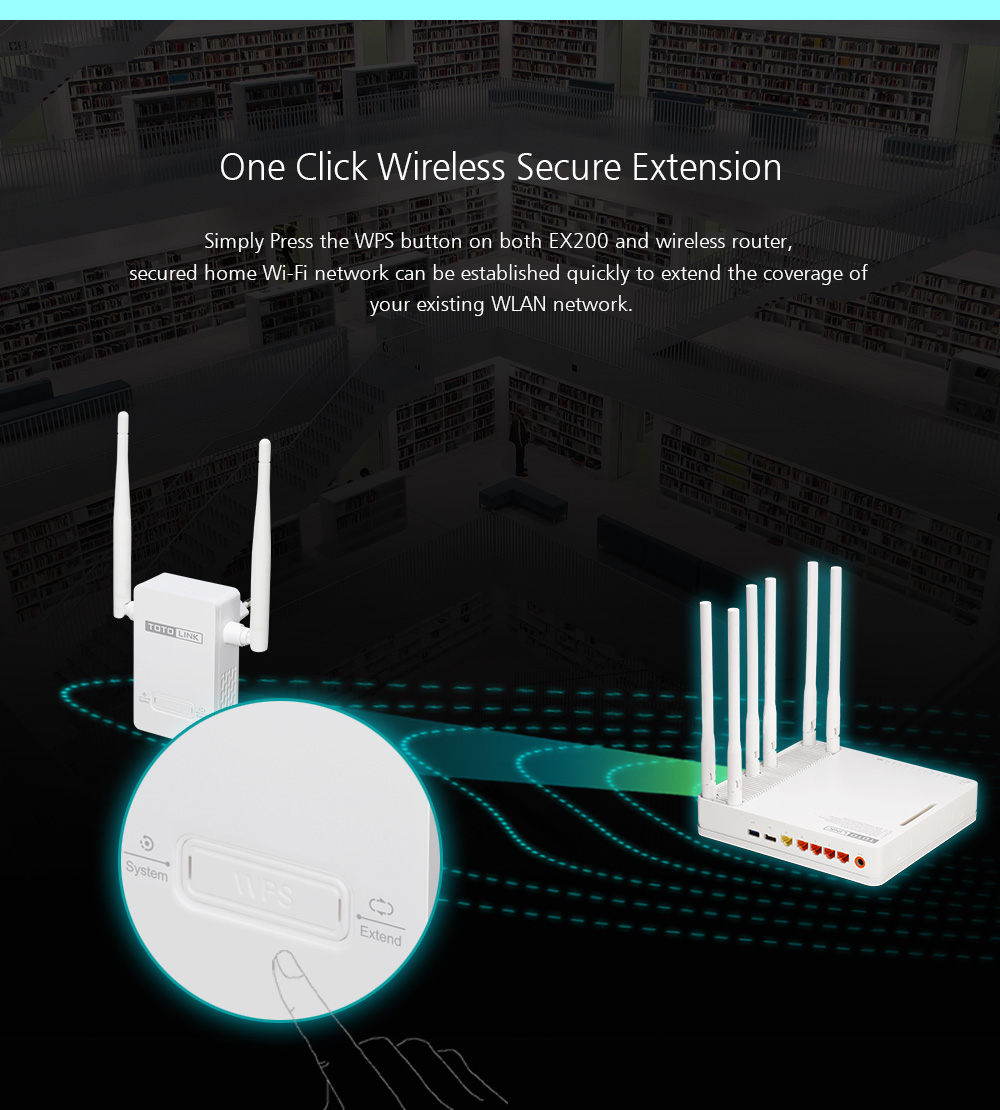

    - One Click Wireless Secure Extension
    - 300Mbps Wireless N Speed
    - Advanced Security



  • - Complies with 802.11b/g/n standards.
    - Up to 300Mbps date rate for Wi-Fi network.
    - Two external antennas enhance the throughput’s stability.
    - Portable and compact stylish design.
    - Supports WPS (Wi-Fi Protected Setup) Wi-Fi extension by one-click.

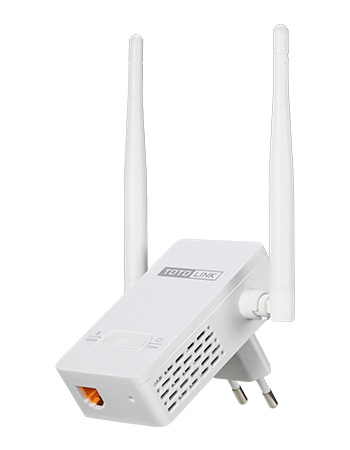

    - One Ethernet port for connecting wired devices to wireless network.
    - Energy saving and environmental protection.
    HARDWARE FEATURES

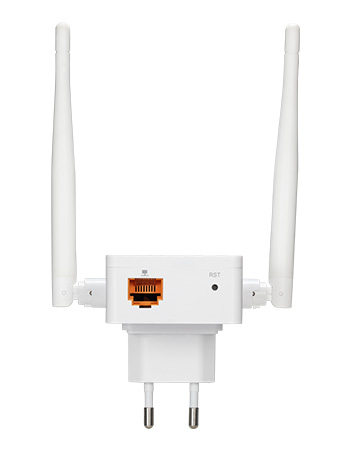

    Interface  1 *10/100BaseTX (Auto MDI/MDIX) RJ45 port
    Power Supply  5V /1A internal power
    Antenna  2 *4dBi External Antennas
    Button  1* WPS Button, 1*RST Button
    LED Indicators  1 *SYS, 1* Wi-Fi
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rate  Up to 300Mbps
    EIRP  < 20dBm
    Wireless Security  64/128-bit WEP, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  11b 11M: - 81 dBm
      11g 54M: - 68 dBm
      11n HT20: - 65 dBm / HT40: - 62 dBm
    Others
    Package Contents  EX200 Wireless Extender *1
      Ethernet Cable *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware

    Model Download Version Updated
    EX200 EX200_V5.2.3c.5426_B20171017.zip V5.2.3c.5426 2017-11-25
    EX200 EX200_V5_1.2.3c.4785_20170512.zip V5.2.3c.4785 2017-06-01
    EX200 EX200_V5.0c.849-20160312.zip V5.0c.849 2016-06-13










    Datasheet

    Model Download Version Updated
    EX200 EX200_datasheet_v1.0.pdf V1.0 2015-12-28







    Quick Install Guide

    Model Download Version Updated
    EX200 EX200 QIG V1.0.pdf ver1.0 2016-07-21







    Model Download Version Updated
    EX200 EX200_Photo009.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo008.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo007.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo006.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo005.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo004.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo003.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo002.jpg Resolution 1200×1200 2016-11-21
    EX200 EX200_Photo001.jpg Resolution 1200×1200 2016-11-21
