EX100

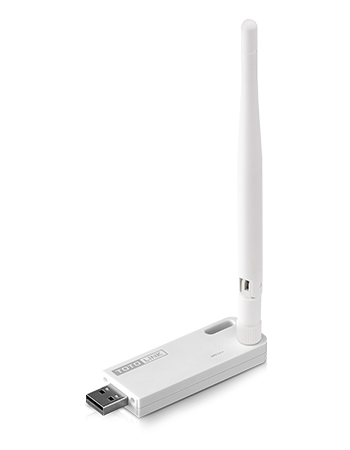

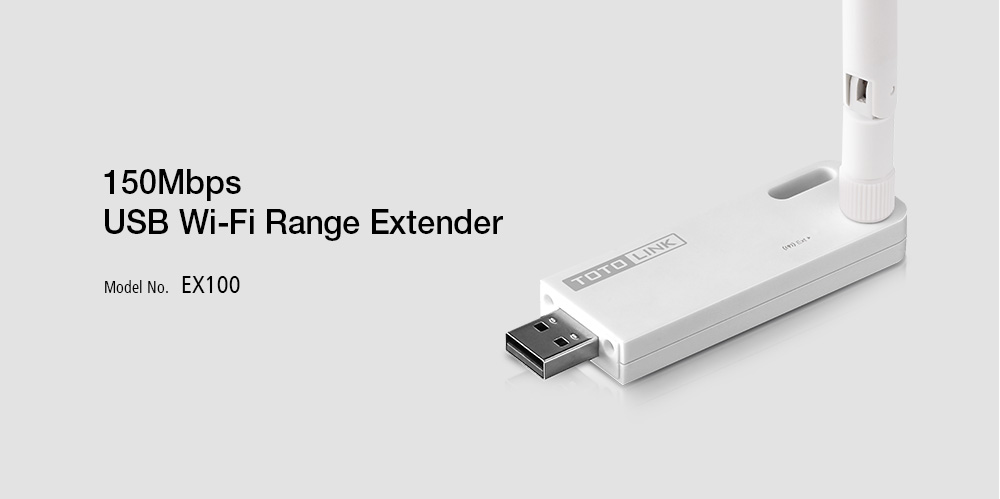

150Mbps USB Wi-Fi Range Extender

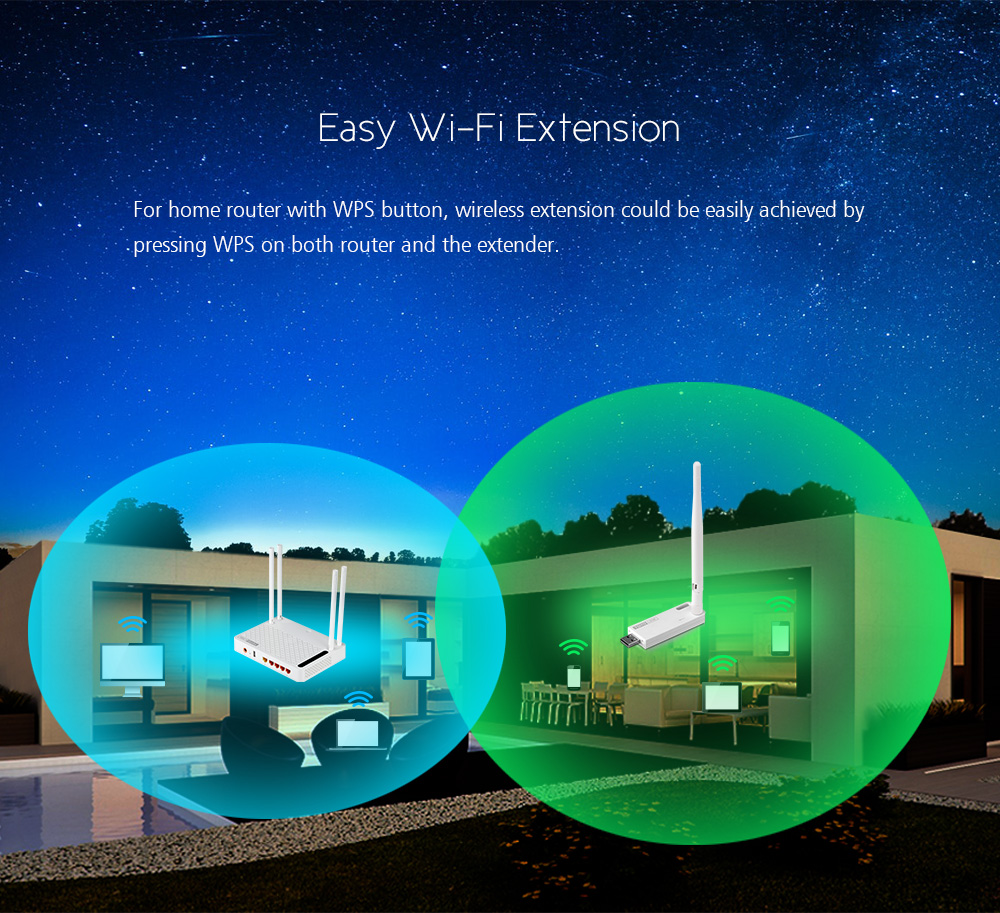

  • - Easy Wi-Fi Extension
    - User-friendly Setting Interface for Smart Phone

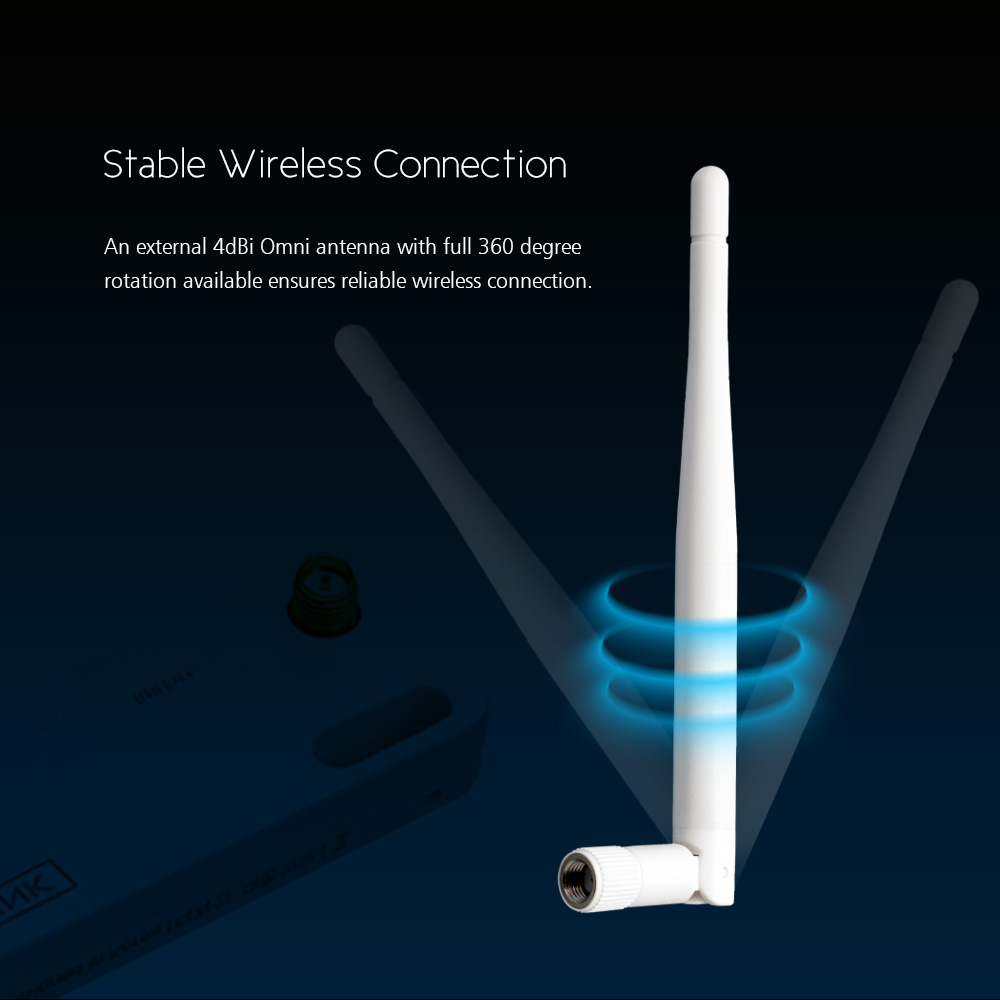

    - Stable Wireless Connection

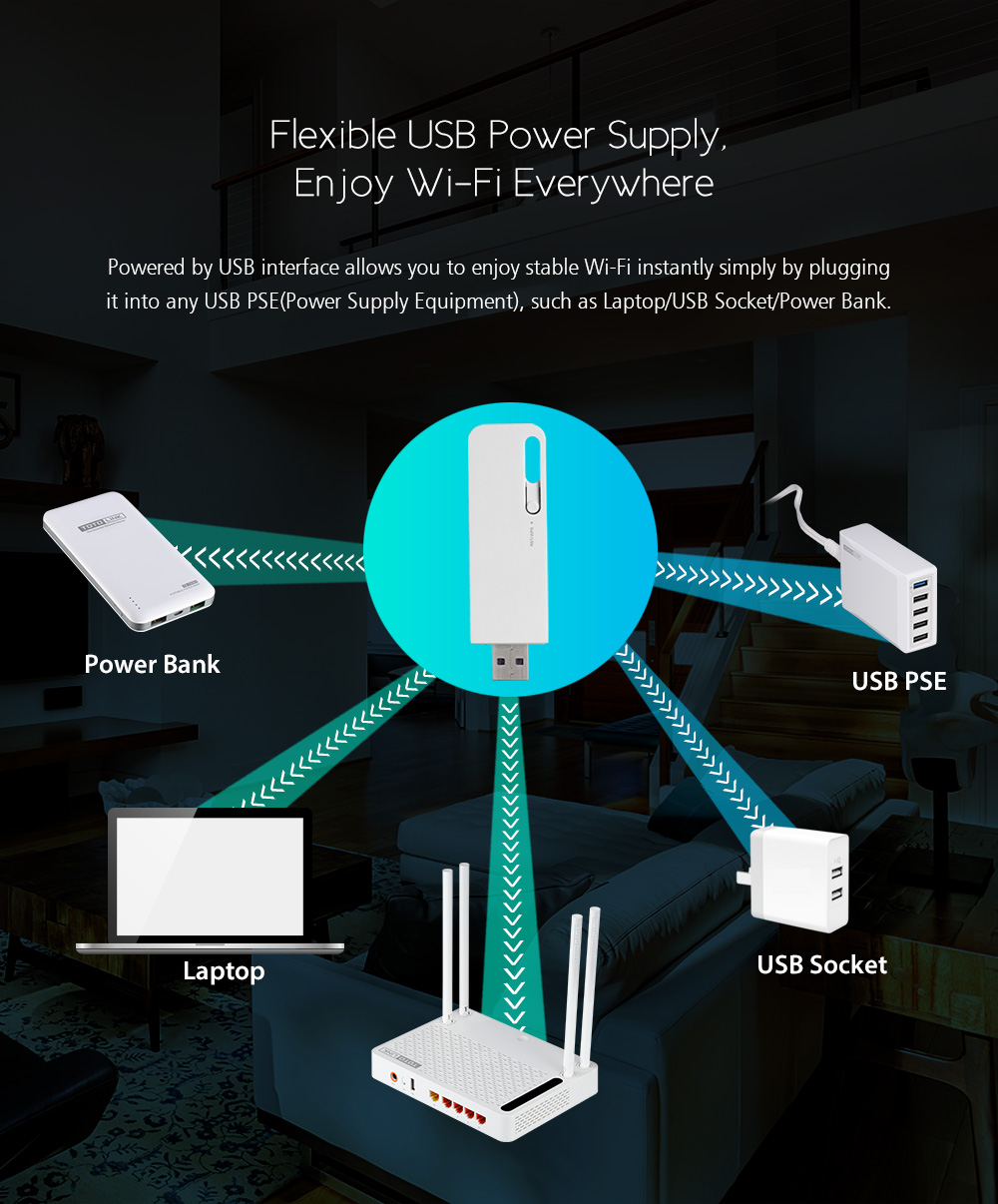

    - Flexible USB Power Supply, Enjoy Wi-Fi Everywhere

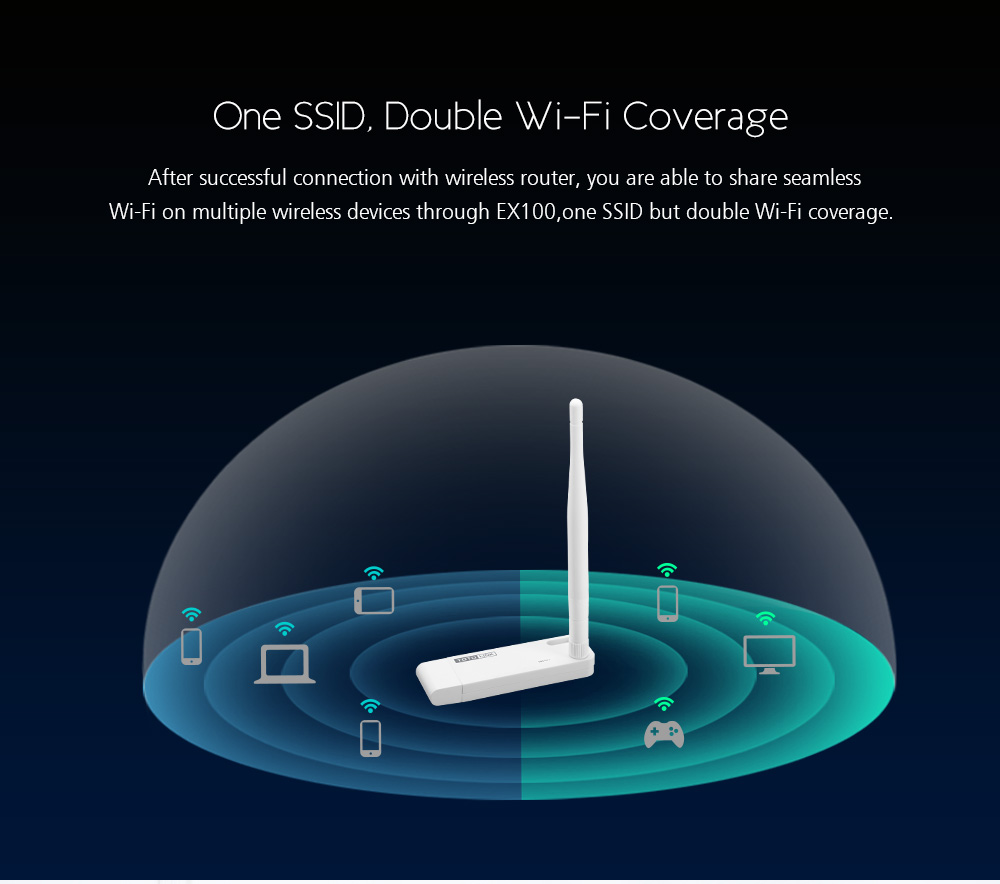

    - One SSID, Double Wi-Fi Coverage
    - High Compatibility

  • - Complies with IEEE 802.11n /g/b standards.

    - USB 2.0 port supports multiple methods for power supply.

    - Compact design for portable use.

    - Up to 150Mbps Wi-Fi speed.

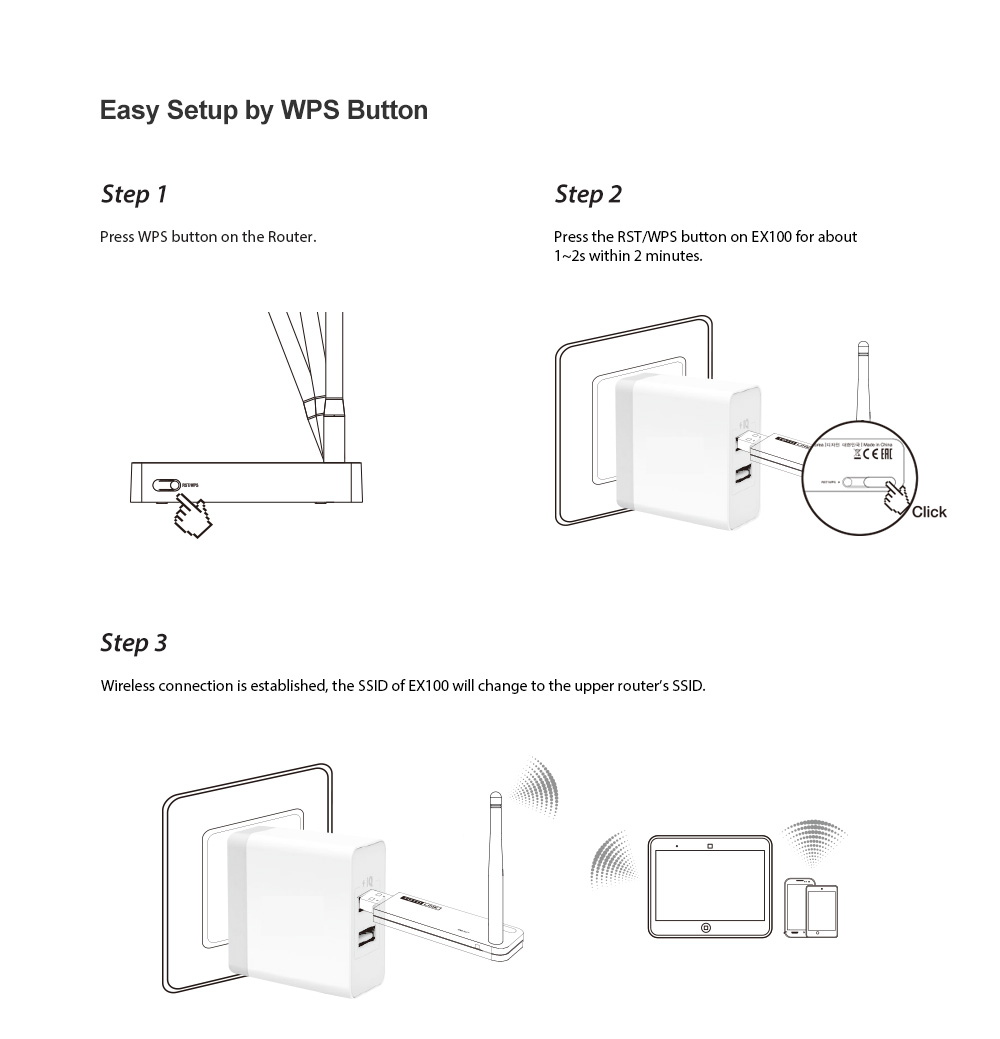

    - WPS button for easy Wi-Fi network extension.

    - Supports quick setting by smart phone.

    HARDWARE FEATURES
    Interface  1* USB2.0 Port
    Antenna   1*4dBi detachable antenna
    Button   1 * RST/WPS Button
    LED Indicator  1* Ext
    Dimensions (L X W X H)  3.4 x 1.0 x 0.4 in. (85.6 x 25.2 x 10mm)
    WIRELESS FEATURES
    Standards  IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
    RF Frequency  2.4~2.4835GHz
    Data Rage  Up to150Mbps
    EIRP  < 20dBm
    Wireless security  64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
    Reception Sensitivity  135M: -65 dBm@10% PER
      54M: -68 dBm@10% PER
      11M: -85 dBm@8% PER
      6M: -88 dBm@10% PER
      1M: -90 dBm@8% PER
    Others
    Package Contents  EX100 Extender *1
      Quick Installation Guide *1
    Environment  Operating Temperature: 0℃~40 ℃ (32 ℉~104℉)
      Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

    All content on this website is only applicable to models selling in overseas markets (outside China mainland, Taiwan and South Korea), any model purchased from China mainland, Taiwan or South Korea caused damage by upgrading software on this website is excluded in after-sales service range.

    Firmware

    Model Download Version Updated
    EX100 EX100_V1.0.379_20170208.zip V1.0.379 2017-06-01






    Datasheet

    Model Download Version Updated
    EX100 EX100_datasheet_V1.pdf Ver1.0 2016-11-09






    Quick Install Guide

    Model Download Version Updated
    EX100 EX100_QIG_Ver1.0.pdf Ver1.0 2016-11-09







    Model Download Version Updated
    EX100 EX100_Photo001.jpg Resolution 1200×1200 2016-11-19
